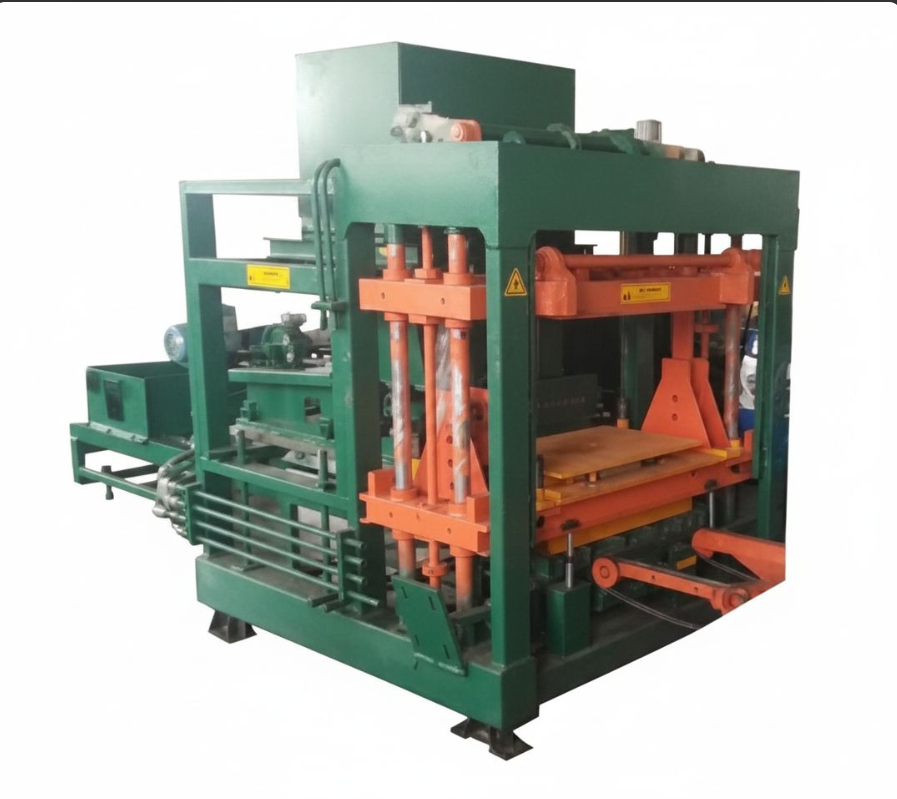

The Semi-Automatic Hydraulic Block Making Machine (QT J4-20 with 6M Conveyor Belt and Platform) is a modern construction machine designed for producing concrete blocks, hollow blocks, paving blocks, and solid bricks efficiently and consistently. It uses a hydraulic system to apply strong pressure and vibration for producing high-quality blocks with accurate shapes and strong durability. The machine is equipped with a 6-meter conveyor belt for smooth material feeding and a working platform that improves handling, productivity, and ease of operation in block manufacturing.

Operation

The operation of the machine begins by mixing cement, sand, stone dust, and water to form concrete material, which is then transferred through the 6-meter conveyor belt into the block mould section. The hydraulic system applies pressure while the vibration mechanism compacts the material inside the mould to form strong and uniform blocks. After moulding, the blocks are released onto the platform for drying and curing, while the machine repeats the cycle continuously for efficient and high-volume block production.
